STEINEL L 22 S outdoor wall light with motion sensor, E27, max. 60 W, stainless steel — 009816
84.50€Bez PVN: 69.83€
STEINEL L 22 N outdoor wall light with twilight sensor, E27, max. 60 W, anthracite — 065782
84.50€
Ex Tax: 69.83€
Viewed 1 time
Categories
Cart
Account
Search
Recent View
Go to Top
All Categories
×
- Indoor lighting
- Outdoor lighting
- Technical lighting
- LED bulbs
- LED strips
- LED power supplies
- Motion sensors and dusk switches
- Motion sensors
- Other
- Sale
Shopping Cart
×
Your shopping cart is empty!
Search
×
Recent View Products
×
Item specifics
- Light source type One E27 bulb, sold separately
- Replaceable light source Yes — the E27 bulb can be replaced by the user
- Number of bulbs 1
- Max. power E27: max. 60 W incandescent or max. 20 W LED / energy-saving bulb
- Voltage 220–240 V AC, 50–60 Hz
- Housing colour Anthracite
- Housing material Stainless steel
- Diffuser material Opal plastic
- Dimensions (L×W×H) 81 × 162 × 280 mm (depth × width × height)
- Mounting type Outdoor wall mounting
- IP rating IP44
- IK rating IK07
- Protection class (electrical) II — double or reinforced insulation
- Operating temperature (Ta) −20 to +40 °C
- Control method NightMatic twilight sensor; automatic switching in darkness and night economy mode
- Basic light None
- Soft light start No
- Weight 724 g (net)
- Warranty 3-year manufacturer warranty under its terms
- SKU 065782
- EAN 4007841065782
- Socket E27
- Included No — sold separately
- Type NightMatic twilight sensor; no motion detection
- Twilight setting 2–50 lx
- Night economy mode Night pause 0–7 h; light switches on again afterwards until dawn
- Setup Using adjustment controls on the light
Product Description

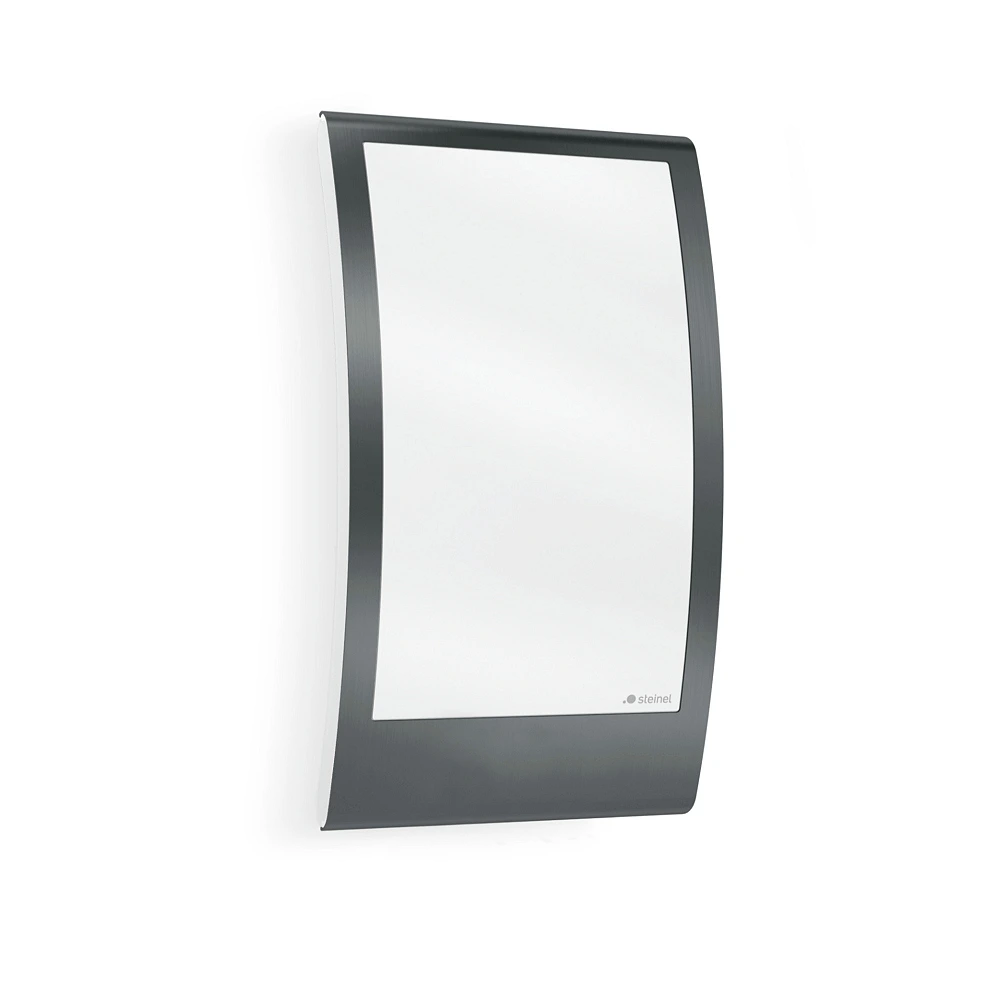

STEINEL L 22 N is an anthracite outdoor wall light with an opal plastic diffuser and an E27 socket. It is suitable for entrances, building walls, terraces and balconies. The integrated NightMatic twilight sensor switches the light on as darkness falls; movement is not needed to activate it.
Choose the bulb that suits you
The E27 bulb is sold separately and can be replaced by the user. The manufacturer permits an incandescent bulb up to 60 W or an LED / energy-saving bulb up to 20 W. When selecting an LED bulb, check its actual power consumption and dimensions so it fits inside the luminaire.
Brightness, colour temperature and colour rendering depend on the chosen bulb. The empty fitting has no fixed lumen or kelvin value. The E27 socket allows the bulb to be replaced later while keeping the luminaire.
Twilight sensor and night pause
The NightMatic twilight threshold is adjustable from 2–50 lx. It determines how dark it must be before the light switches on automatically; settings are adjusted using controls on the light. This version has no PIR motion sensor and responds to the change between day and night.
The night economy mode provides a pause of 0–7 hours, allowing the light to switch off for part of the night and come back on until dawn. During the first approximately 24 hours after first connection, the controller adapts to the day/night cycle; it may also switch the light on during daylight in this initial phase. The current manufacturer model name is L 22 N; this variant is also known as L 22 NM.
Housing and outdoor protection
IP44 provides protection against water splashes, making the light suitable for outdoor wall mounting. The stainless steel housing is combined with a UV-resistant opal plastic diffuser. This product is the anthracite variant. IK07 describes tested resistance to mechanical impact.
Installation, additional operating data and package contents
Dimensions and connection
Dimensions 81 × 162 × 280 mm (depth × width × height), net weight 724 g. Designed for wall mounting with a concealed or surface-mounted supply lead, with a 220–240 V AC, 50–60 Hz supply. Electrical protection class II means double or reinforced insulation. Follow the installation instructions for this model with the power disconnected. Operating temperature −20 to +40 °C.
Package contents
One luminaire, mounting accessories and instructions; the E27 bulb is not included.
Care and warranty
Clean with a soft, slightly damp cloth without aggressive cleaning agents. 3-year manufacturer warranty under its terms.
Manufacturer documents and drawings
- Technical datasheet (DE, PDF)
- Manufacturer warranty conditions (DE, PDF)
- Installation and operating manual (LV/EN/DE, PDF)
- Dimension drawing (DE, PDF)
- Mounting drilling template (PDF)
- Tender specification (DE, DOCX)
- EU declaration of conformity (EN/DE, PDF)
- Quick start guide (EN/DE, PDF)
- Technical datasheet (EN, PDF)
- Dimension drawing (EN, PDF)
- Tender specification (EN, DOCX)
