Steinel
STEINEL L 331 S outdoor LED sensor wall light with grille, 8.4 W, 711 lm, 3000 K, anthracite — 053093
178.00€Bez PVN: 147.11€
STEINEL L 330 S LED sensor wall light, 8.4 W, 815 lm, 3000 K, anthracite — 053079
178.00€
Ex Tax: 147.11€
Energy class:
Viewed 2 times
Categories
Cart
Account
Search
Recent View
Go to Top
All Categories
×
- Indoor lighting
- Outdoor lighting
- Technical lighting
- LED bulbs
- LED strips and profiles
- LED power supplies
- Motion sensors and dusk switches
- Motion sensors
- Other
- Sale
Shopping Cart
×
Your shopping cart is empty!
Search
×
Recent View Products
×
Item specifics
- Light source type Integrated LED
- Replaceable light source No
- Voltage 220–240 V AC, 50–60 Hz
- Housing colour Anthracite
- Housing material Weatherproof UV-resistant plastic
- Diffuser material Impact-resistant opal PMMA plastic
- Dimensions (L×W×H) 109 × 253 × 270 mm (D × W × H)
- Mounting type Wall mounting, indoors and outdoors
- IP rating IP44
- IK rating IK10
- Protection class (electrical) II
- Operating temperature (Ta) −20…+35 °C
- Control method PIR sensor; potentiometers
- Soft light start Yes
- Replaceable driver No
- Weight 1037 g
- Warranty 5 years
- Accessories Sensor masking shrouds
- Wattage 8.4 W
- Luminous flux 815 lm
- Luminous efficacy (lm/W) 97 lm/W
- Colour temperature (CCT) 3000 K
- Light colour Warm white
- Colour rendering index (CRI/Ra) Ra 82
- Colour consistency (SDCM) SDCM 3
- Dimmable No freely adjustable main brightness; fixed 10% basic light
- Energy class D
- Energy consumption (kWh/1000 h) 9 kWh/1000 h
- Rated Lifetime (hours) L70B50 (25 °C) > 60000 h
- SKU 053079
- EAN 4007841053079
- Sensor type PIR
- Reach Up to 7 m tangential; 2 m radial
- Detection angle 360°
- Optimal mounting height 2 m
- Maximum mounting height 2.5 m
- Time setting 5 s–15 min
- Twilight setting 2–1000 lx
- Sneak-by guard Yes
- Segment masking Yes, included shrouds
- Manual override 4 h via external switch
- Watt-o-matic 10%; off / all night / until calculated middle of night
- Parallel connection K-line; master/master; max. 10 lights, 50 m cable
- Settings Potentiometers on removable sensor module
Product Description

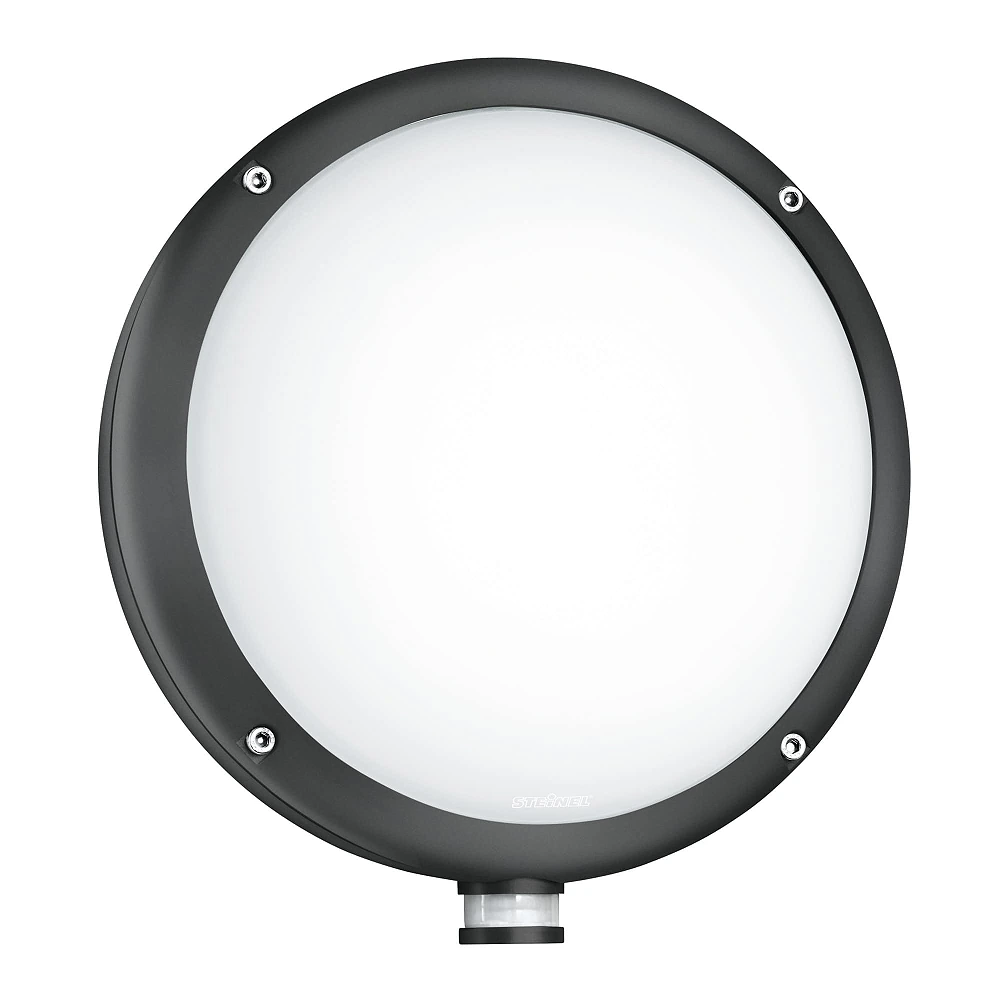

STEINEL L 330 S is a round anthracite wall light with automatic motion detection. Its opal PMMA diffuser spreads the light, while the dark frame provides a restrained detail beside an entrance, garage or staircase. The manufacturer permits installation on indoor and outdoor walls, making this model suitable for shared circulation areas as well as the approach to a building.
Warm white lighting with a robust cover
The integrated 8.4 W LED system delivers 815 lm of warm white 3000 K light. There is no separate bulb to purchase. A weatherproof plastic base and impact-resistant diffuser provide a practical construction for everyday use. The fitting carries IP44 protection and an IK10 impact rating, with a simple circular front that works with different building styles.
360° detection and four lighting programmes
A 360° passive infrared sensor detects movement up to 7 m away when crossing its detection zone. The stated reach for a direct approach is 2 m. Included shrouds allow unwanted sections to be masked. Physical controls on the removable sensor module adjust the operating time from 5 seconds to 15 minutes, the twilight threshold from 2 to 1000 lux, and the programme.
The standard programme uses a gradual soft start. Comfort mode maintains approximately 10% basic lighting and increases brightness when movement is detected; the economy programme keeps basic lighting until the calculated middle of the night. Nightmatic mode switches according to ambient brightness without evaluating movement. A separately installed mains switch can also activate four hours of continuous lighting.
Coordinated lighting around the building
A K-line communication cable can link up to 10 L 330 S or L 331 S lights, allowing movement at one fitting to activate the group. Maximum cable length is 50 m and the same programme must be selected throughout. Article 053079 has a five-year manufacturer's warranty. The LED light source and control gear are not replaceable.
