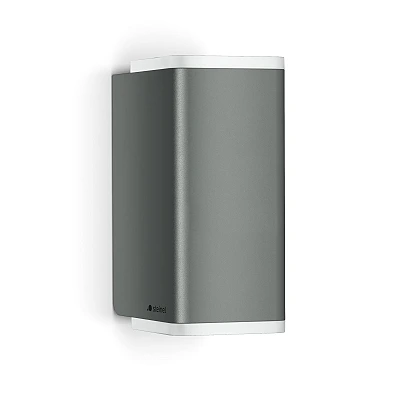

STEINEL L 930 LED outdoor wall light without sensor, 9.3 W, 457 lm, 3000 K, anthracite — 078713
129.50€Bez PVN: 107.02€
STEINEL L 930 S LED outdoor sensor wall light, 9.3 W, 457 lm, 3000 K, anthracite — 067199
140.50€
Ex Tax: 116.12€
Energy class:
Viewed 3 times
Categories
Cart
Account
Search
Recent View
Go to Top
All Categories
×
- Indoor lighting
- Outdoor lighting
- Technical lighting
- LED bulbs
- LED strips and profiles
- LED power supplies
- Motion sensors and dusk switches
- Motion sensors
- Other
- Sale
Shopping Cart
×
Your shopping cart is empty!
Search
×
Recent View Products
×
Item specifics
- Light source type Integrated LED
- Replaceable light source No
- Voltage 220–240 V AC, 50/60 Hz
- Housing colour Anthracite
- Housing material Aluminium
- Light direction Up / down
- Diffuser material Opal plastic
- Dimensions (L×W×H) 92 × 63 × 137 mm (D × W × H)
- Mounting type Surface wall mounting, outdoors
- IP rating IP44
- IK rating IK03
- Protection class (electrical) I
- Operating temperature (Ta) −20…+40 °C
- Control method PIR sensor; DIP switches
- Soft light start Yes
- Replaceable driver No
- Weight 910 g
- Warranty 3 years
- Wattage 9.3 W
- Luminous flux 457 lm
- Luminous efficacy (lm/W) 49 lm/W
- Colour temperature (CCT) 3000 K
- Light colour Warm white
- Colour rendering index (CRI/Ra) Ra 82
- Colour consistency (SDCM) SDCM 3
- Smart control No
- Energy class D
- Energy consumption (kWh/1000 h) 10 kWh/1000 h
- Rated Lifetime (hours) >60 000 h L70B50 (25 °C)
- SKU 067199
- EAN 4007841067199
- Sensor type PIR
- Reach 5 or 12 m tangential; 2 or 4 m radial
- Detection angle 140°
- Optimal mounting height 2.2 m
- Maximum mounting height 2.5 m
- Time setting 2 or 15 min
- Twilight setting 2 or 20 lx
- Manual override 4 h using external switch
- Watt-o-matic 10%; off / all night / half night
- Parallel connection Cable; up to 10 compatible lights, max. 50 m
- Settings DIP switches
Product Description

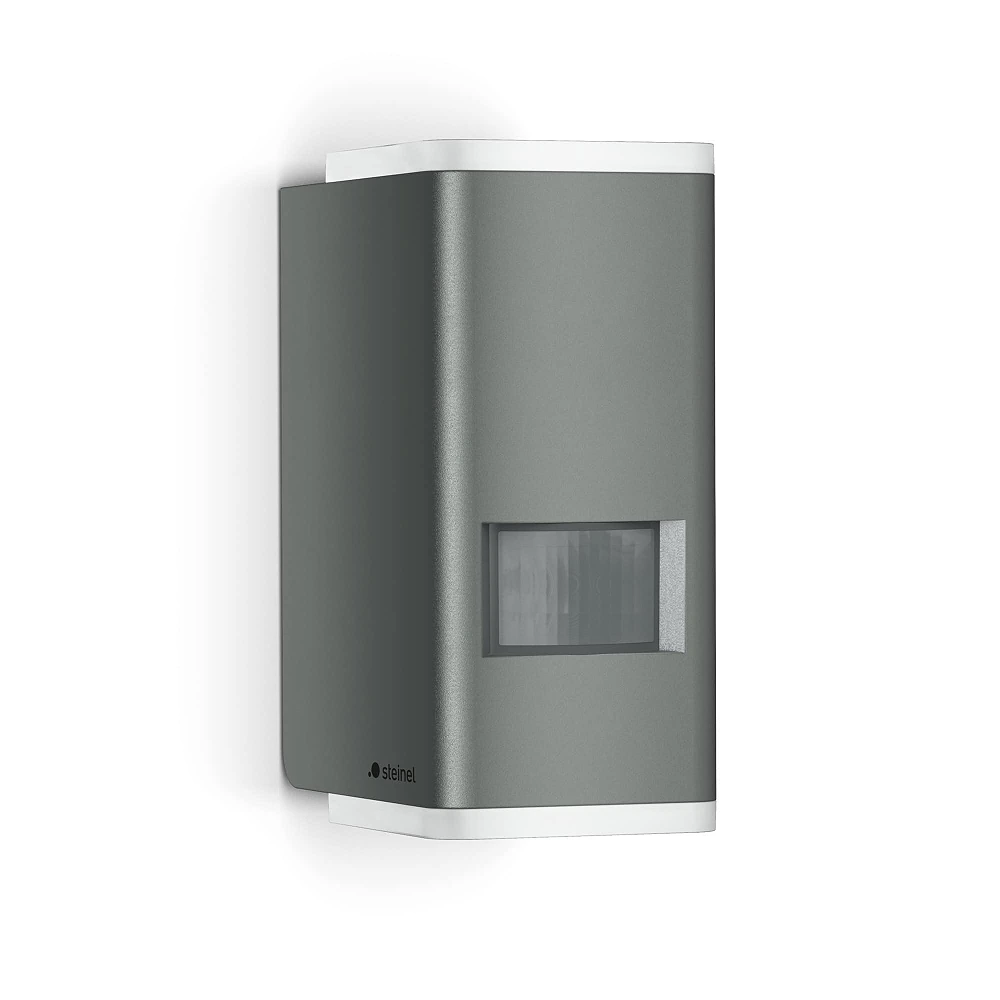

STEINEL L 930 S is a compact outdoor wall light in anthracite that combines architectural accent lighting with automatic switching. Its upward and downward light highlights the wall surface and creates a vertical feature beside an entrance, along a façade or on a terrace. The aluminium housing keeps the appearance simple, with the motion sensor integrated into the front.
The built-in 9.3 W LED system produces 457 lm of warm white 3000 K light, so there is no separate bulb to choose or purchase. The lighting effect suits a welcoming entrance or a series of repeated accents around the house, while the sensor brings the light to full output when movement is detected.
Choose how the entrance responds
The 140° infrared sensor offers a choice of 5 or 12 metres of detection reach. DIP switches provide two twilight thresholds, 2 or 20 lux, and two operating times, 2 or 15 minutes. These are fixed choices, making the controls straightforward to set for the installation. Mounting the light to detect movement across the sensor gives more dependable detection than approaching it directly.
Optional 10% basic lighting keeps a gentle façade accent between detections. It can operate throughout the night or use the night economy setting. A soft light start provides a gradual transition, and a mains switch can activate four hours of continuous light for times when automatic switching would be inconvenient.
For several entrances or a longer façade, up to 10 compatible lights can be linked by cable. The IP44 housing is designed for outdoor wall mounting, with an optimum sensor mounting height of 2.2 m. This is the sensor version, article 067199.
Related model
STEINEL L 930 LED outdoor wall light without sensor, 9.3 W, 457 lm, 3000 K, anthracite — 078713
