Steinel
STEINEL LS 300 S LED outdoor floodlight with sensor, 29.5 W, 2704 lm, 4000 K, black — 067571
136.50€Bez PVN: 112.81€
STEINEL LS 300 S LED outdoor floodlight with sensor, 29.5 W, 2704 lm, 4000 K, white — 067588
136.50€
Ex Tax: 112.81€
Energy class:
Viewed 2 times
Categories
Cart
Account
Search
Recent View
Go to Top
All Categories
×
- Indoor lighting
- Outdoor lighting
- Technical lighting
- LED bulbs
- LED strips and profiles
- LED power supplies
- Motion sensors and dusk switches
- Motion sensors
- Other
- Sale
Shopping Cart
×
Your shopping cart is empty!
Search
×
Recent View Products
×
Item specifics
- Light source type Integrated LED
- Replaceable light source No
- Voltage 220–240 V AC, 50–60 Hz
- Housing colour White
- Housing material Aluminium floodlight head with UV-resistant plastic base
- Diffuser material Clear glass
- Dimensions (L×W×H) 186 × 213 × 241 mm (D × W × H)
- Mounting type Wall mounting, indoors and outdoors
- Adjustable head Yes
- Rotation angle (°) 80° (−40°…+40°)
- Tilt angle (°) 150° (−40°…+110°)
- IP rating IP44
- IK rating IK03
- Protection class (electrical) I
- Operating temperature (Ta) −10…+30 °C
- Control method PIR sensor; physical controls
- Soft light start No
- Replaceable driver No
- Weight 1240 g
- Warranty 3 years
- Wattage 30.4 W total; nominal LED output 29.5 W
- Luminous flux 2704 lm
- Luminous efficacy (lm/W) 92 lm/W
- Colour temperature (CCT) 4000 K
- Light colour Neutral white
- Colour rendering index (CRI/Ra) Ra 80
- Colour consistency (SDCM) SDCM 3
- Dimmable No
- Energy class F
- Energy consumption (kWh/1000 h) 30 kWh/1000 h
- Rated Lifetime (hours) L70B50 (25 °C) > 36000 h
- SKU 067588
- EAN 4007841067588
- Sensor type PIR
- Reach Up to 12 m tangential; 3.5 m radial
- Detection angle 240°
- Optimal mounting height 2 m
- Maximum mounting height 4 m
- Time setting 10 s–15 min
- Twilight setting 2–1000 lx
- Sneak-by guard Yes
- Segment masking Yes, included shrouds
- Settings Physical controls on sensor
Product Description

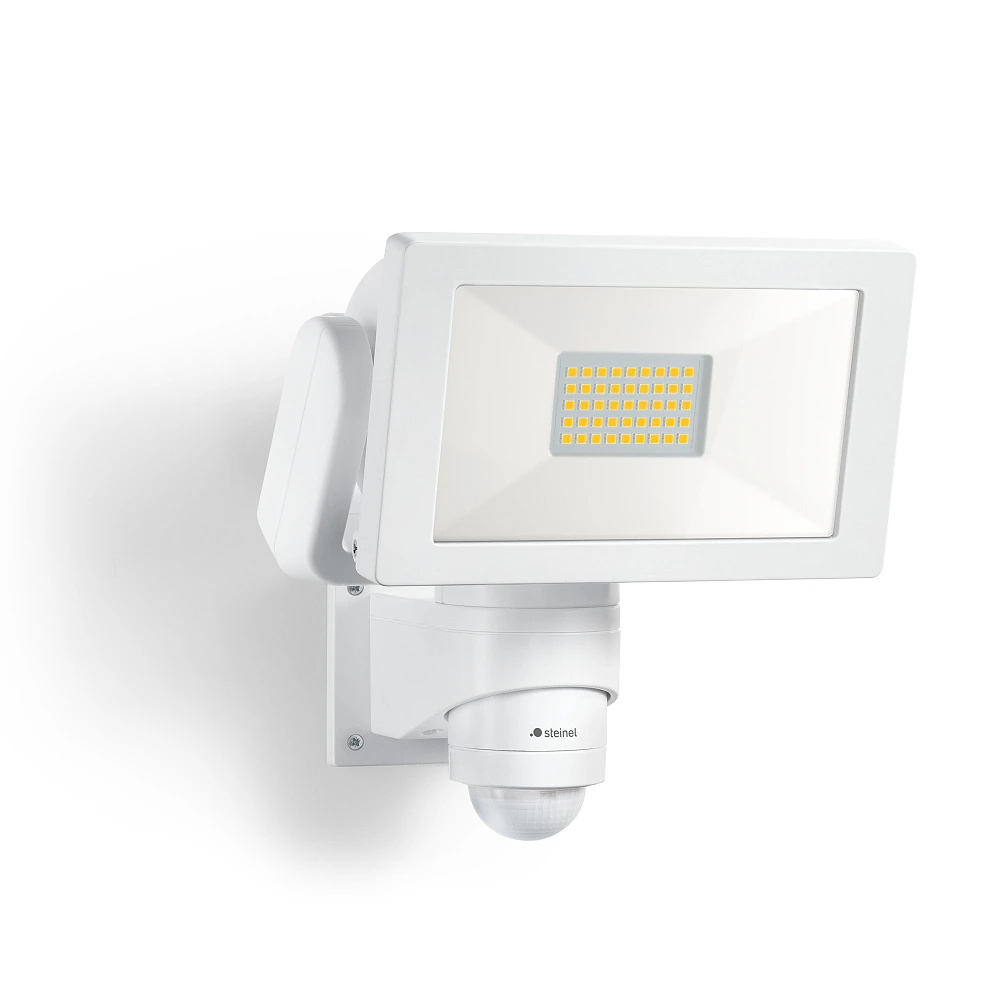

STEINEL LS 300 S is a white outdoor LED floodlight with a motion sensor for driveways, courtyards and side entrances. Its broad, adjustable lighting head lets you aim the light at the required area, while automatic switching provides illumination as you arrive home or move around the building.
The 29.5 W LED system delivers 2704 lm of neutral white 4000 K light. The light source is integrated, so no separate bulb is needed. A ceramic reflector distributes the output, while the aluminium floodlight head and clear glass cover form a practical assembly for directing the light.
Adjust illumination and detection independently
The floodlight head turns 80° horizontally and 150° vertically. The sensor housing also swivels through 160° horizontally. This allows you to aim the illumination along a driveway while directing detection towards the approach from a door or path.
A 240° passive infrared sensor detects movement up to 12 m away when someone crosses the detection zone. Reach is shorter when approaching directly. Included masking shrouds help exclude unwanted sectors, such as movement beyond the intended entrance area. Around 2 m is the recommended installation height for optimum detection.
Physical control dials set the operating time from 10 seconds to 15 minutes and the twilight threshold from 2 to 1000 lux. Further movement restarts the timer, keeping the light responsive while the area is in use. These controls let you adapt operation to the site directly on the fitting.
The IP44 housing is designed for outdoor wall mounting, with installation accessories included. This is the white sensor-equipped version, article 067588. It is not dimmable, and the integrated LED module and control gear cannot be replaced.
