Item specifics
- Light source type Integrated LED
- Replaceable light source No — LED is not user-replaceable
- Voltage 220–240 V AC
- Housing colour White
- Housing material Plastic
- Diffuser material UV-resistant opal PMMA plastic
- Dimensions (L×W×H) Ø276 × 105 mm
- Mounting type Surface mounting on wall or ceiling; indoors
- IP rating IP44
- IK rating IK03
- Protection class (electrical) Class II — double insulation
- Operating temperature (Ta) −10…+40 °C
- Remote control included No remote control supplied
- Soft light start No
- Driver included Yes — LED control gear in the fitting
- Additional switching capacity Incandescent/halogen 800 W; LED/ECG 250 W, up to 50 units, C <88 µF; follow wiring diagram
- Weight 400 g
- Warranty 3-year manufacturer warranty subject to STEINEL terms
- Accessories Mounting accessories included; one light
- Wattage 9.5 W — light switched on
- Luminous flux 958 lm
- Luminous efficacy (lm/W) 100 lm/W
- Colour temperature (CCT) 4000 K
- Light colour Neutral white
- Colour rendering index (CRI/Ra) Ra 82
- Colour consistency (SDCM) SDCM 3
- Power factor (PF) 0.94
- Mains frequency 50–60 Hz
- Dimmable Not for external dimmers; built-in 10% basic light
- Energy class E — built-in light source LS-0086 label
- Energy consumption (kWh/1000 h) 10 kWh/1000 h — light source energy label
- Rated Lifetime (hours) >60,000 h (L70B50, 25 °C)
- SKU 008383
- EAN 4007841008383
- Sensor type High-frequency (HF), 5.8 GHz; transmission power <1 mW
- Reach Ø3–8 m detection diameter; up to 50 m²
- Detection angle 360°; 160° angle of aperture
- Maximum mounting height 4 m
- Time setting 5 s–15 min after last movement
- Twilight setting 2–2000 lx
- Sensor system Electronically adjustable; may detect through glass, wood and lightweight partitions
- Segment masking Not provided; adjust coverage using sensitivity control
- Manual override Selectable 4-hour continuous light
- Watt-o-matic 10%; off, 10 min, 30 min or all night
- Output Approximately 0.4 W sensor standby
- Parallel connection Cable, master/master; follow circuit diagram and load limits
- Settings Potentiometers beneath the cover
Product Description

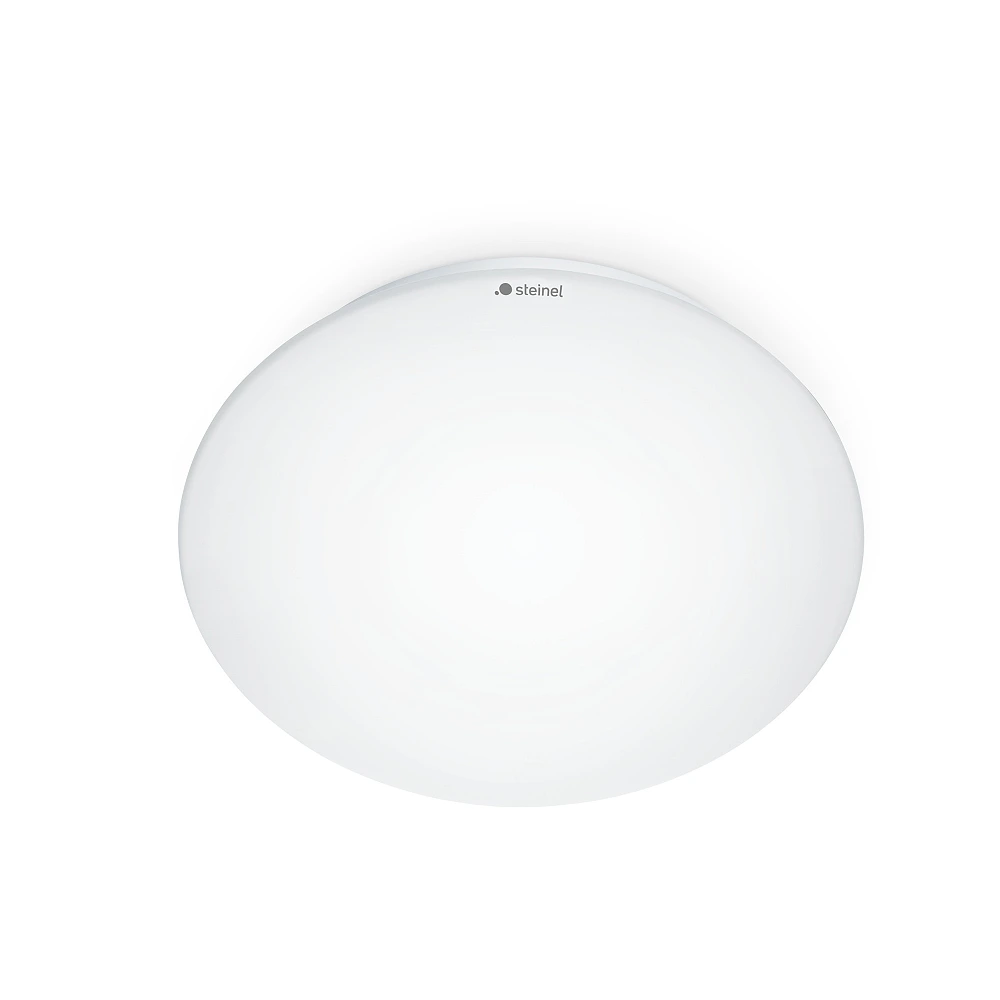

STEINEL RS 16 S PMMA is a white indoor LED light with a UV-resistant opal plastic cover and an integrated motion sensor. Weighing approximately 400 g, it suits corridors, stairwells, utility rooms and washrooms. Its LED delivers 958 lm at 9.5 W; the fixed 4000 K neutral-white light colour provides clear, practical illumination.
A lightweight PMMA version
PMMA is an acrylic plastic that diffuses the light while keeping the fitting light in weight. This article has a 4000 K light colour and measures Ø276 × 105 mm. RS 16 S Glass is a separate article with a glass cover, warm-white light and different dimensions. Each version has its own product card.
Motion detection and night-time basic light
The concealed 360° HF sensor uses 5.8 GHz technology. Its detection diameter adjusts from Ø3–8 m, covering up to 50 m². Detection can work through glass, wood and lightweight partitions, so sensitivity should be matched to the room. The manufacturer recommends at least 3 m separation from Wi-Fi routers and access points.
Potentiometers set a 5-second to 15-minute delay after the last movement and a 2–2000 lx ambient-light threshold. Optional 10% basic light can remain on for 10 minutes, 30 minutes or all night. A 4-hour continuous-light mode is also available. Several lights can be connected by cable for simultaneous switching.
Installation and LED system
The fitting mounts on the surface of a wall or ceiling. IP44 denotes splash protection, IK03 impact resistance and electrical class II double insulation. LED colour rendering is Ra 82, and stated life exceeds 60,000 h at L70B50 and 25 °C.
One light with its LED system and mounting accessories is supplied. No separate bulb is required; the LED is not user-replaceable. Do not connect an external dimmer. Sensor standby consumption is approximately 0.4 W. Application photos illustrate the RS 16 family; this article's light colour is 4000 K.
Other versions in this family
- RS 16 L S, E27 bulb sold separately, with sensor — 738013
- RS 16 S Glass, 3000 K, with sensor — 035105
Manufacturer documents
- Data sheet (PDF) (EN)
- Operating and installation manual (PDF, multilingual)
- Wiring diagrams (PDF)
- Dimension drawing (PDF)
- Tender specification (DOCX) (EN)
- EU declaration of conformity (PDF)
- Packaging conformity document (PDF)
- Built-in light source energy label (PDF)
- Manufacturer warranty terms (PDF, German)
- Mounting drilling template (PDF; print at actual size)
- STEINEL product page
