Item specifics
- Light source type Integrated LED system
- Replaceable light source No
- Voltage 220–240 V AC, 50–60 Hz
- Housing colour White
- Housing material Plastic
- Dimensions (L×W×H) 174 × 174 × 73 mm (Ø × Ø × H)
- Mounting height 2–4 m; detection diagram at 2.8 m
- IP rating IP54 room side; IP20 above ceiling
- IK rating IK05
- Protection class (electrical) II
- Operating temperature (Ta) −20…+40 °C
- Dimming method Integrated Bluetooth Mesh control; external phase-cut dimmer not permitted
- Basic light Adjustable through STEINEL Connect app
- Soft light start Yes; adjustable fade time
- Driver included Yes, integrated
- Replaceable driver No
- Weight 0.316 kg
- Warranty 5 years
- Accessories Optional: refurbishment trim 087364; PB2/PB4 Bluetooth push-buttons
- Wattage 10.8 W
- Luminous flux 1109 lm (3000 K); 1177 lm (4000 K); 1137 lm (5700 K)
- Luminous efficacy (lm/W) 103 / 109 / 105 lm/W (3000 / 4000 / 5700 K)
- Colour temperature (CCT) 3000 / 4000 / 5700 K; selected by switch on luminaire
- Colour rendering index (CRI/Ra) 82
- Colour consistency (SDCM) SDCM3
- Power factor (PF) 0.93
- Dimmable Yes, through STEINEL Connect app
- Energy class E (integrated light source)
- Rated Lifetime (hours) >54 000 h (L80); >60 000 h (L70B50, 25 °C)
- Photobiological risk group RG1
- SKU 084998
- EAN 4007841084998
- Mounting type Spring clips
- Installation Recessed ceiling installation, indoors only
- Recessed depth 73 mm; allow space for the connection
- Cut-out diameter Ø 140–155 mm
- Visible trim Ø 174 mm
- Sensor type HF high-frequency sensor, 5.8 GHz
- Reach Up to Ø 7 m (38 m²), radial and tangential
- Detection angle 360°
- Time setting 5 s–60 min
- Twilight setting 2–2000 lx
- Parallel connection Wireless Bluetooth Mesh; compatible STEINEL Mesh lights
- Interface & control Bluetooth Mesh; STEINEL Connect app; group and neighbouring-group control
- Standby power consumption (W) 0.46 W
Product Description

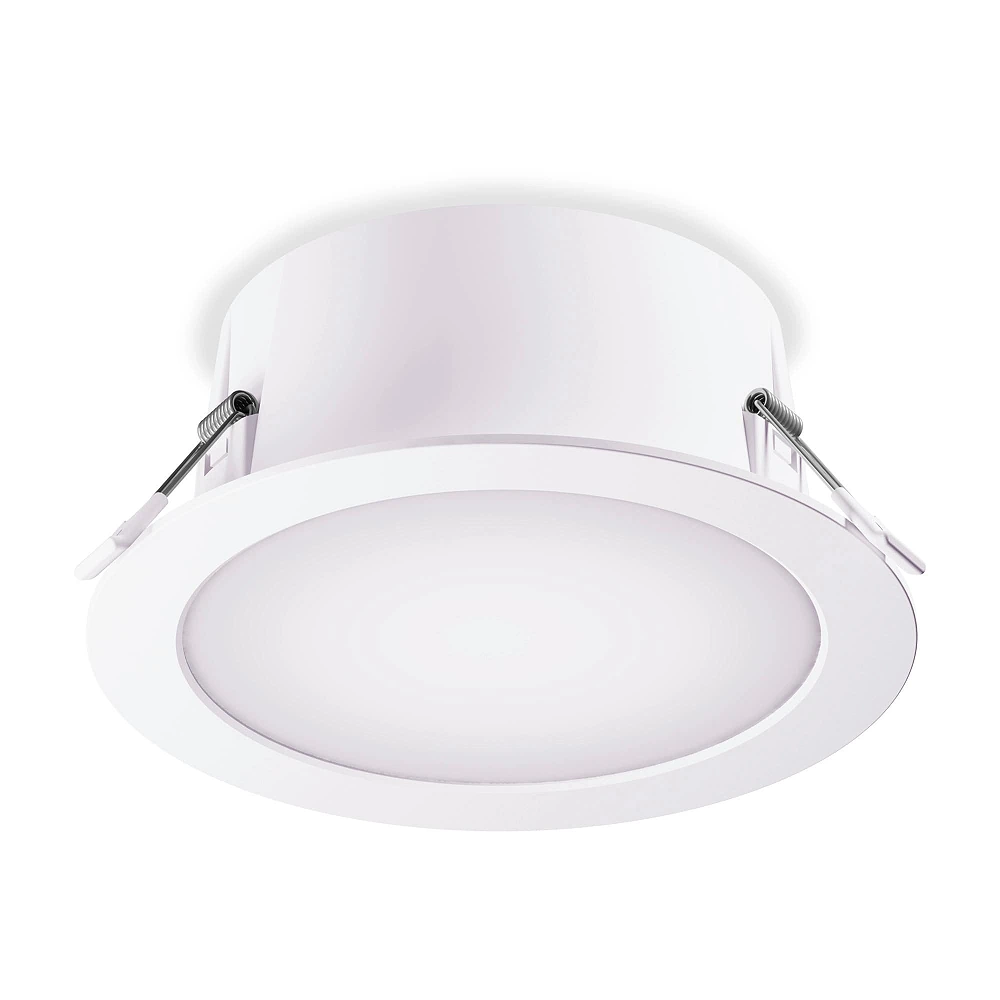

STEINEL RS PRO DL 150 SC is a compact white recessed downlight for corridors, stairwells and shared washrooms. Its visible circular trim measures 174 mm across, while the sensor is concealed inside the housing, keeping a projecting detector lens out of the ceiling design. Designed for indoor use, it combines illumination, motion detection and wireless group control within one fitting.
Three white light settings in one fitting
The 10.8 W LED system offers a physical colour-temperature selector on the luminaire. Choose warm 3000 K light, neutral 4000 K or cooler 5700 K to suit the room. The corresponding output is 1109, 1177 and 1137 lm, allowing the same product family to serve areas with different lighting preferences. Basic and main light levels are configured through the app; this fitting is not intended for connection to an external phase-cut dimmer.
Motion control across connected areas
An integrated 360° high-frequency sensor detects movement across an area up to 7 m in diameter. STEINEL Connect provides adjustment of the operating time and ambient-light threshold. Bluetooth Mesh allows compatible fittings to form groups without an additional control cable. The neighbouring-group function can illuminate the next area ahead, while an adjustable basic level maintains orientation lighting between detections. Soft start and fade settings provide gradual changes in brightness.
Recessed installation with separate cut-out dimensions
The fitting has a 73 mm housing height and spring clips for ceiling installation. Its standard cut-out is Ø 140–155 mm; the visible outer trim measures 174 mm. An optional refurbishment trim can adapt larger existing openings. IP54 protection applies to the room-facing side, while the part above the ceiling is IP20. WAGO terminals support connection and three-pole through-wiring. The model has a five-year manufacturer's warranty; the LED source and driver are not replaceable.
- Set the light colour on the luminaire; adjust brightness and sensor operation in the app.
- The stated detection reach is the diameter of the zone, not its radius.
- Suitable for stand-alone use and compatible Bluetooth Mesh lighting groups.
- The refurbishment adapter is an optional accessory, supplied separately.
