STEINEL IR Quattro SLIM XS 4m KNX presence detector, 360°, IP20, white
150.50€Bez PVN: 124.38€
STEINEL IR Quattro SLIM XS 4m KNX presence detector, PIR, 360°, 4×4 m, IP20, black
216.50€
Ex Tax: 178.93€
Viewed 4 times
Item specifics
- Weight 62 g (net)
- Recessed depth Min.57 mm installation box
- Cut-out diameter Installation box up toØ68 mm
- Number of detection zones 408
- Sensor technology PIR; passive infrared
- Installation UP — concealed ceiling installation box
- Detection angle 360°; square detection pattern
- Optimal mounting height 2.8 m
- Time setting 60 s–255 min
- Sneak-by guard Yes
- Manual control External KNX commands; programming button is not a lighting pushbutton
- Output type KNX telegrams; external actuators for lighting loads
- Interface & control KNX TP 256; bus coupling; KNX Secure:no
- Settings ETS; optional RC 6/RC 7/Smart Remote
- Colour / RAL Black; RAL 9005
- Manufacturer SKU 082260
- EAN 4007841082260
- Sensor type PIR; passive infrared; mixed-light measurement
- Presence detection zone 4 ×4 m (16 m²), at 2.8 m
- Motion detection Tangential 4 × 4 m; radial 4 ×4 m; at 2.8 m
- Application Indoors
- Installation Ceiling installation box; concealed wiring
- Installation height 2.5–4 m
- Light-level setting 10–1000 lx
- Voltage KNX bus
- Functions Constant-light control; light 1–4; basic light; presence; HVAC; day/night; logic
- Housing Plastic
- IP rating IP 20
- Dimensions 49 ×80 ×80 mm
- Temperature range 0…+40 °C
- Warranty 5 years; manufacturer terms
- Incoming current 10 mA
- Dimmable Yes; separate KNX dimming actuator required
- Dimming method KNX 0–100 %commands to an external dimming actuator
Product Description

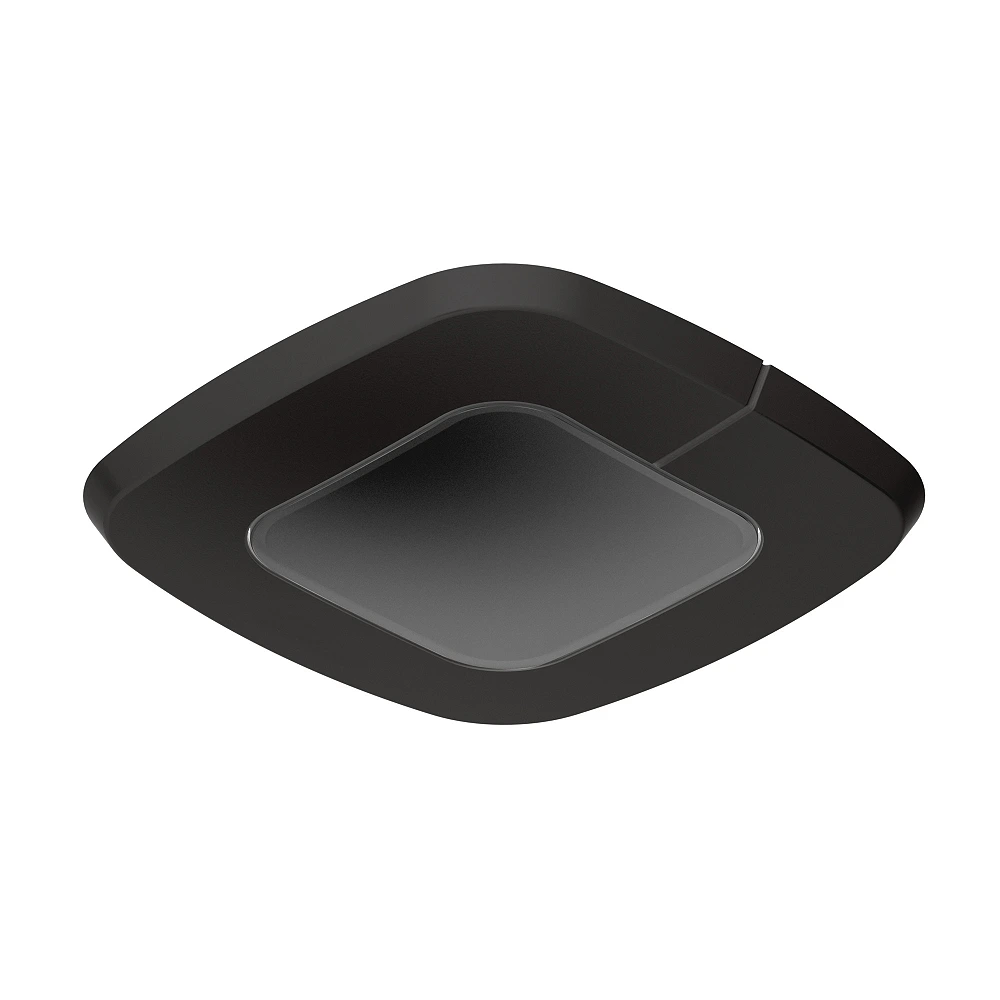

STEINEL IR Quattro SLIM XS 4m KNX is a black recessed ceiling presence detector for rooms equipped with KNX building automation. It combines passive infrared sensing and measurement of room brightness, helping coordinate lighting with occupancy and available daylight. The black RAL 9005 plastic housing suits dark ceilings and interiors where technical equipment should blend into the finish. Typical applications include a single office, hotel room, care room and small ancillary space. This listing is specifically for article 082260 with a KNX interface. Separate system actuators switch and regulate electrical lighting loads and must be selected for the intended project.
The exceptionally flat SLIM XS face helps maintain an unobtrusive ceiling appearance. Its square trim measures 80 ×80 mm, while overall device depth is 49 mm. Installation requires a ceiling mounting box at least 57 mm deep; the instructions specify a box up toØ68 mm. A round trim is also included. The 360° detection pattern provides 4 ×4 m or 16 m² for presence, radial movement and tangential movement at a height of 2.8 m. The lens forms 408 detection zones. Its permitted mounting height is 2.5–4 m, making it suitable for normal working and occupied rooms when planned around the actual ceiling height and furniture.
PIR technology responds to changing heat radiation during movement, including smaller movements at a workstation. Plan detection around the actual room: cabinets, partitions and other furniture can obstruct the sensor’s view. Infrared detection cannot monitor an adjoining room through a wall or guarantee recognition of a completely motionless person under every condition. Where occupants move very little, select a stay-on time that supports comfortable daily use. Avoid positions immediately beside heat sources that could interfere with detection. STEINEL states an optimum installation height of 2.8 m; commissioning should test both entry into the room and movements made by someone seated at the intended workstation.
Power is supplied through the KNX bus, and the detector includes an integrated bus coupling. It must not be connected to 230 V mains. The manufacturer’s application supports constant-light control, basic lighting and up to four logical lighting channels. 0–100% dimming commands must be linked to the corresponding objects of a compatible external KNX dimming actuator; these channels are not four physical relays. Presence, day/night and HVAC objects are also available. The integrator assigns an address, selects functions and connects group addresses in ETS software. Actual lighting, heating or ventilation behaviour consequently depends on sensor parameters, actuator capabilities and the selected control logic.
The brightness threshold is adjustable within 10–1000 lx and the lighting stay-on time within 1–255 minutes, with supported IQ operation. IP 20 protection and the 0…+40°C temperature range are intended for dry indoor environments. RC 6, RC 7 and Smart Remote are optional accessories for supported settings and user-control functions. They do not replace the KNX power supply, bus wiring or actuators. The detector’s programming button is intended for commissioning rather than daily lighting control. After configuration, test manual commands, light regulation and switch-off delay. Wipe the lens with a damp cloth without detergents. STEINEL provides a five-year manufacturer’s warranty, subject to its warranty terms.
