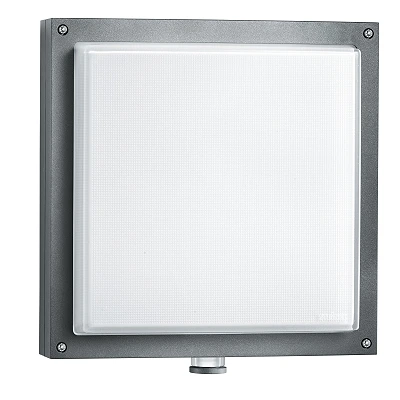

STEINEL L 690 S PMMA LED outdoor sensor house number light, 8.5 W, 700 lm, 3000 K, anthracite — 053000
292.00€Bez PVN: 241.32€
STEINEL L 691 S PMMA LED outdoor sensor wall light with grid guard, 8.5 W, 576 lm, 3000 K, anthracite — 053031
292.00€
Ex Tax: 241.32€
Energy class:
Viewed 2 times
Categories
Cart
Account
Search
Recent View
Go to Top
All Categories
×
- Indoor lighting
- Outdoor lighting
- Technical lighting
- LED bulbs
- LED strips and profiles
- LED power supplies
- Motion sensors and dusk switches
- Motion sensors
- Other
- Sale
Shopping Cart
×
Your shopping cart is empty!
Search
×
Item specifics
- Light source type Integrated LED
- Replaceable light source No
- Voltage 220–240 V AC, 50–60 Hz
- Housing colour Anthracite
- Housing material Aluminium
- Diffuser material Opal PMMA plastic
- Dimensions (L×W×H) 126 × 291 × 303 mm (D × W × H)
- Mounting type Surface wall mounting, outdoors
- IP rating IP44
- IK rating IK07
- Protection class (electrical) II
- Operating temperature (Ta) −20…+50 °C
- Control method PIR sensor; potentiometers
- Soft light start Yes
- Replaceable driver No
- Weight 2969 g
- Warranty 5 years
- Accessories Sensor masking shrouds
- Wattage 8.5 W
- Luminous flux 576 lm
- Luminous efficacy (lm/W) 68 lm/W
- Colour temperature (CCT) 3000 K
- Light colour Warm white
- Colour rendering index (CRI/Ra) Ra 82
- Colour consistency (SDCM) SDCM 3
- Dimmable No freely adjustable main brightness; fixed 10% basic light
- Energy class D
- Energy consumption (kWh/1000 h) 9 kWh/1000 h
- Rated Lifetime (hours) L70B50 (25 °C) > 60000 h
- SKU 053031
- EAN 4007841053031
- Sensor type PIR
- Reach Up to 7 m tangential; 1.5 m radial
- Detection angle 360°
- Optimal mounting height 2 m
- Maximum mounting height 2.5 m
- Time setting 5 s–15 min
- Twilight setting 2–1000 lx
- Sneak-by guard Yes
- Segment masking Yes, included shrouds
- Manual override 4 h via external switch
- Watt-o-matic 10%; off / all night / until calculated middle of night
- Parallel connection K-line; master/master; max. 10 lights, 50 m cable
- Settings Potentiometers on removable sensor module
Product Description

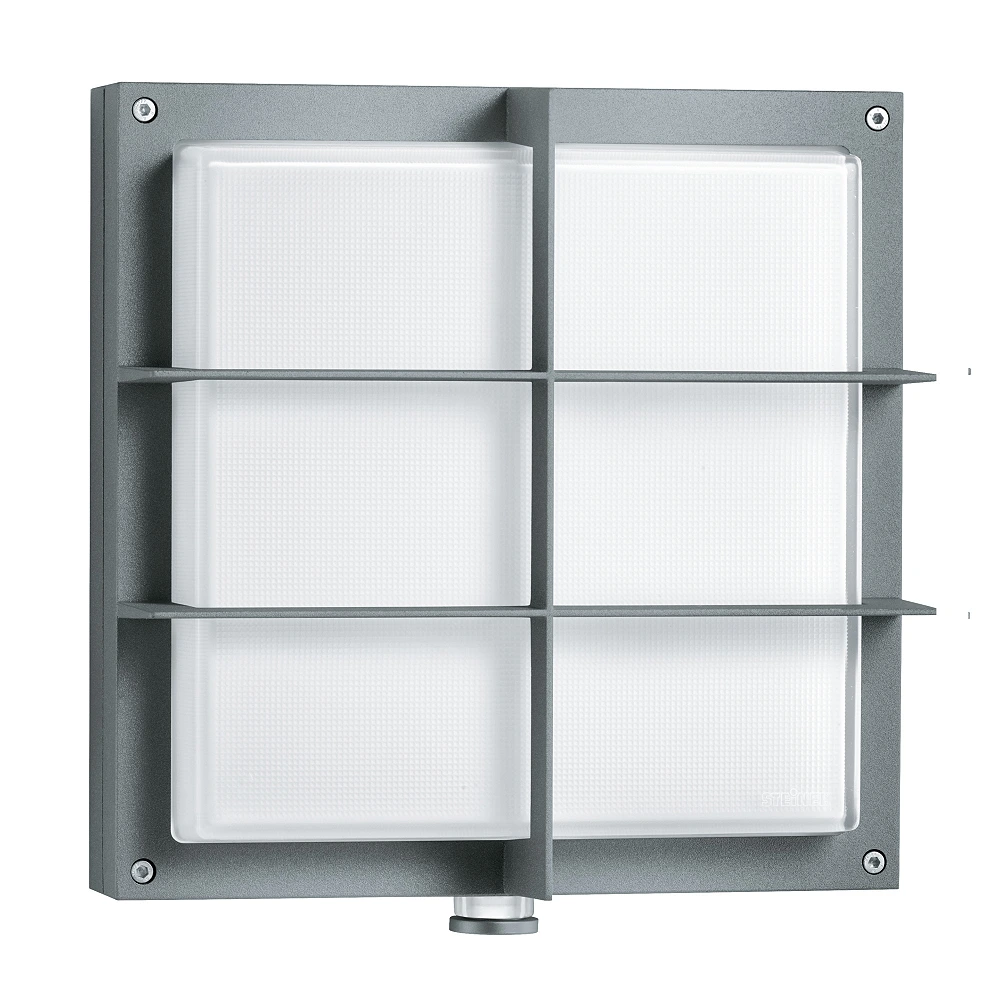

STEINEL L 691 S PMMA is a square outdoor LED wall light in anthracite with a distinctive front grid guard. Its aluminium base and opal PMMA cover form a robust housing, while the grid provides additional protection in front of the diffuser. It suits building entrances, courtyards and service areas where practical automatic lighting is needed.
The integrated 8.5 W LED system delivers 576 lm of warm white 3000 K light. The light source is already part of the fitting, so no separate bulb or colour temperature selection is required. A broad opal cover provides an evenly illuminated surface, framed by the anthracite body and grid for a restrained, functional appearance.
Adjust the response to the entrance
A 360° passive infrared sensor underneath the fitting switches the light in response to movement. Its maximum 7 m reach applies to movement across the detection zone; reach is shorter when approaching directly. Supplied shrouds can mask individual sectors. The recommended mounting height is 2 m, with a clear view of the approach so that walls or planting do not obstruct detection.
Control dials on the sensor module set the operating time from 5 seconds to 15 minutes and the twilight threshold from 2 to 1000 lux. Four programmes cover movement-controlled lighting, optional 10% basic lighting, night economy operation and a twilight mode without movement evaluation. Soft starting and stopping make brightness changes gradual, while four hours of continuous illumination can be selected when required.
IP44 protection and IK07 impact resistance suit outdoor wall mounting. Up to 10 L 690 S or L 691 S lights can be linked by cable for coordinated operation. This is the grid-equipped version, article 053031. The LED module and control gear cannot be replaced.
