Item specifics
- Light source type Integrated LED
- Replaceable light source No
- Voltage 220–240 V AC, 50–60 Hz
- Housing colour Anthracite
- Housing material Aluminium
- Diffuser material Opal PMMA plastic
- Dimensions (L×W×H) 104 × 291 × 303 mm (D × W × H)
- Mounting type Surface wall mounting, outdoors
- IP rating IP44
- IK rating IK07
- Protection class (electrical) II
- Operating temperature (Ta) −20…+50 °C
- Control method PIR sensor; potentiometers
- Soft light start Yes
- Replaceable driver No
- Weight 2784 g
- Warranty 5 years
- Accessories Self-adhesive house numbers; sensor masking shrouds
- Wattage 8.5 W
- Luminous flux 700 lm
- Luminous efficacy (lm/W) 82 lm/W
- Colour temperature (CCT) 3000 K
- Light colour Warm white
- Colour rendering index (CRI/Ra) Ra 82
- Colour consistency (SDCM) SDCM 3
- Dimmable No freely adjustable main brightness; fixed 10% basic light
- Energy class D
- Energy consumption (kWh/1000 h) 9 kWh/1000 h
- Rated Lifetime (hours) L70B50 (25 °C) > 60000 h
- SKU 053000
- EAN 4007841053000
- Sensor type PIR
- Reach Up to 7 m tangential; 1.5 m radial
- Detection angle 360°
- Optimal mounting height 2 m
- Maximum mounting height 2.5 m
- Time setting 5 s–15 min
- Twilight setting 2–1000 lx
- Sneak-by guard Yes
- Segment masking Yes, included shrouds
- Manual override 4 h via external switch
- Watt-o-matic 10%; off / all night / until calculated middle of night
- Parallel connection K-line; master/master; max. 10 lights, 50 m cable
- Settings Potentiometers on removable sensor module
Product Description

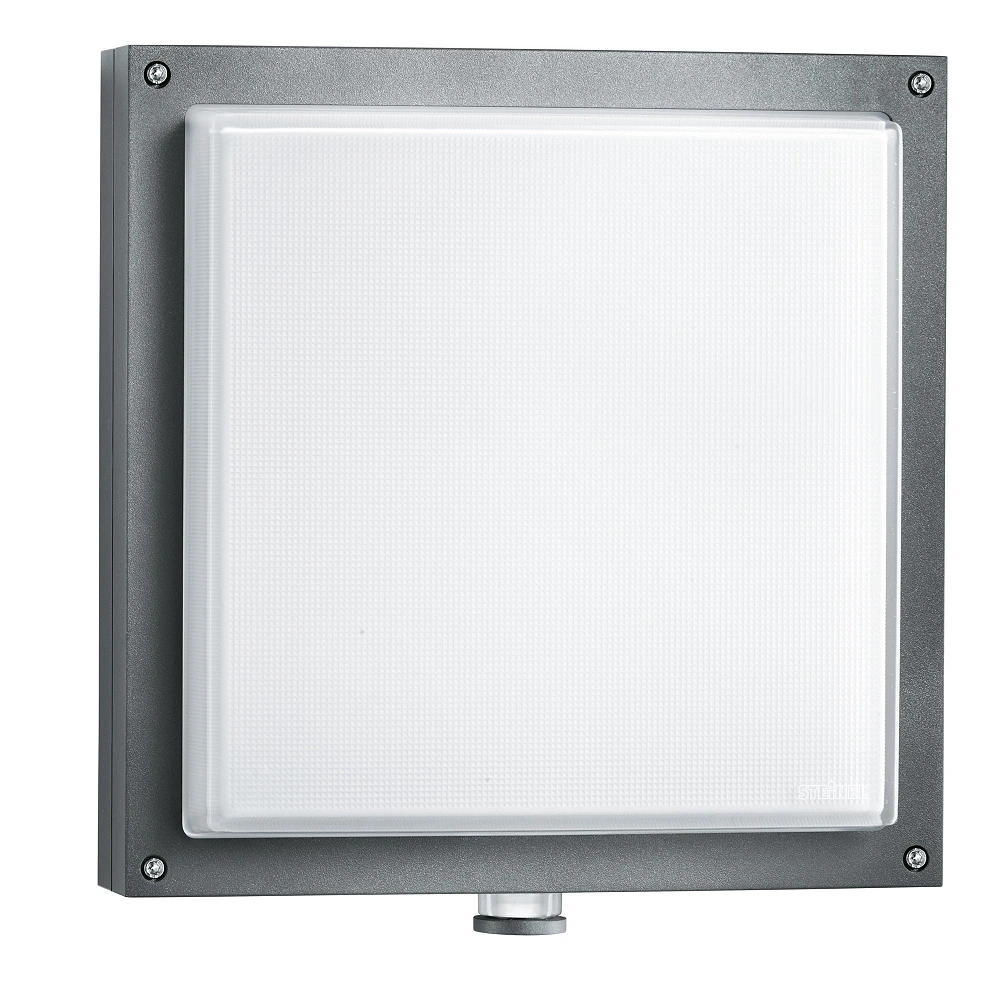

STEINEL L 690 S PMMA is a square outdoor LED wall light in anthracite for entrances and the area immediately around a building. An aluminium base and opal PMMA cover give it a straightforward, practical appearance. It suits a front door, side entrance or courtyard where automatic lighting and a robust construction are useful.
The integrated 8.5 W LED system provides 700 lm of warm white 3000 K light, with no separate bulb required. A sheet of self-adhesive house numbers is included for placing your address on the illuminated cover. The fitting can therefore provide both entrance lighting and a visible building number after dark. The number in the product image is an example.
Motion detection with physical controls
A 360° passive infrared sensor detects movement up to 7 m away when someone crosses the detection zone. Detection reach is shorter when approaching directly. Supplied masking shrouds allow unwanted sections to be excluded, helping keep the response focused on the intended entrance. The control dials sit on the removable sensor module, allowing settings to be adjusted without an app or remote control.
Operating time is adjustable from 5 seconds to 15 minutes, with a twilight threshold from 2 to 1000 lux. Soft starting and stopping create gradual brightness transitions. Four programmes offer operation with or without 10% basic lighting, an economy option that reduces lighting later at night, and twilight-controlled operation. Four hours of continuous light can also be selected when needed.
The IP44 and IK07 construction is designed for outdoor wall mounting. Up to 10 lights from this series can be connected by control cable to respond together. This is PMMA article 053000, without a front grid guard. The LED module and control gear are not replaceable.
