Item specifics
- Light source type GU10 LED bulb
- Replaceable light source Yes — user-replaceable GU10 LED bulb
- Number of bulbs 1
- Max. power GU10 LED bulb up to 9 W; not suitable for halogen bulbs
- Voltage 220–240 V AC
- Housing colour Anthracite
- Housing material Aluminium
- Adjustable light direction Head tilts through 90°
- Diffuser material Transparent plastic
- Dimensions (L×W×H) 118 × 69 × 369 mm — depth × width × height; manufacturer drawing
- Mounting type Ground spike; outdoor use
- Tilt angle (°) 90°
- IP rating IP44
- IK rating IK03
- Protection class (electrical) I — protective earth required
- Operating temperature (Ta) −20…+40 °C
- Cable length 2.5 m; with mains plug
- Switch type Twilight switch and permanently-on setting
- Control method NightAuto twilight switch; control-dial adjustment; no motion sensor
- Basic light No reduced basic-light function
- Soft light start No
- Replaceable driver No — control gear is not replaceable; GU10 bulb is replaceable
- Twilight setting 2–1000 lx; adjustable threshold for automatic dusk switching
- Weight 716 g — net
- Warranty 3-year manufacturer warranty subject to warranty terms
- Accessories Included: ground spike, 2 screws, 2.5 m cable with plug and GU10 LED bulb
- Wattage 7.86 W — complete fitting when on
- Luminous flux 512 lm — complete fitting output
- Luminous efficacy (lm/W) 65.1 lm/W
- Colour temperature (CCT) 3000 K
- Light colour Warm white
- Colour rendering index (CRI/Ra) Ra 81
- Colour consistency (SDCM) SDCM5
- Mains frequency 50–60 Hz
- Dimmable No; not suitable for an external dimmer
- Smart control No Bluetooth or app control
- Energy class F — supplied GU10 LED bulb LS-0003; EPREL 715074
- Energy consumption (kWh/1000 h) 7 kWh/1000 h — supplied bulb energy label
- Rated Lifetime (hours) >20,000 h — L70B50 at 25 °C; supplied LED bulb
- SKU 058692
- EAN 4007841058692
- Output power 6.7 W — supplied bulb power
- Socket GU10
- Included Yes — 1 × GU10 LED, 6.7 W, 3000 K
Product Description

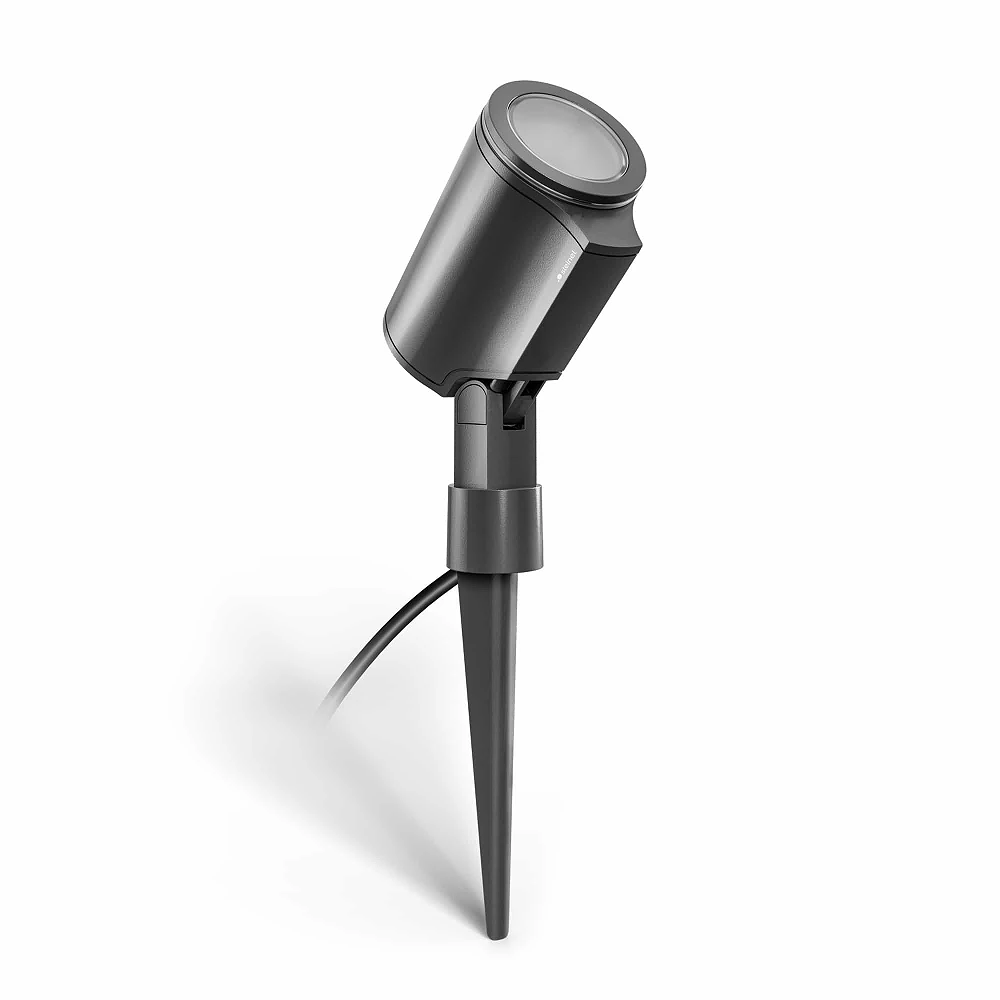

STEINEL Spot Garden N is an anthracite LED garden spotlight with a ground spike, with twilight switch. It suits flower beds, shrubs, decorative planting and other garden features. The head tilts through 90° to direct light where it is needed.
Warm-white light and a replaceable bulb
One 6.7 W GU10 LED bulb is included. With this bulb, the complete fitting delivers 512 lm of 3000 K warm-white light. Total operating power is 7.86 W. The manufacturer also lists 620 lm for the bulb itself; the complete fitting delivers 512 lm after optical losses.
The bulb is user-replaceable, so reaching the end of its life does not require replacing the entire fitting. Use a GU10 LED bulb rated up to 9 W; halogen bulbs are not suitable. The fitting is not dimmable. The supplied bulb has energy efficiency class F and an energy-label consumption of 7 kWh/1000 h.
NightAuto: automatic light at dusk
The integrated twilight switch measures ambient brightness, turning the light on as darkness falls and off when daylight returns. A control dial sets the threshold from 2 to 1000 lx: a lower setting means the surroundings must be darker before the light switches on. A permanently-on setting is also available.
The N version does not detect movement and has no Bluetooth. No app is needed for adjustment. The factory setting is permanently on; select a twilight threshold to enable automatic dusk operation. Keep leaves and other objects clear of the light-level sensor. Standby consumption is 0.20 W.
Installation and supplied items
The aluminium housing is designed for outdoor use. IP44 denotes protection against water splashes, while IK03 is the impact-resistance rating. A 2.5 m cable with mains plug connects to an outdoor IP44 socket. The fitting operates on 220–240 V mains power and is electrical class I, requiring a protective earth connection.
The package contains the light with cable, a ground spike, two screws and a GU10 LED bulb. Push the spike into the soil. Total height including the spike is 369 mm; the visible height depends on insertion depth. The manufacturer's drawing gives 118 × 69 × 369 mm (depth × width × height).
The stated LED lifetime exceeds 20,000 hours at L70B50 and 25 °C. The manufacturer provides a 3-year warranty subject to its terms. Keep the cover seal clean and undamaged when changing the bulb. Detailed settings and installation steps are available in the manual below.
