STEINEL IR Quattro SLIM XS 4m KNX presence detector, 360°, IP20, white
150.50€
Ex Tax: 124.38€
Viewed 12 times
Item specifics
- Weight 62 g (net)
- Recessed depth Min. 57 mm per manual
- Cut-out diameter Mounting box max. Ø68 mm
- Number of detection zones 408
- Sensor technology PIR; passive infrared
- Installation Concealed mounting; ceiling installation box
- Detection angle 360°; square detection zone
- Optimal mounting height 2.8 m
- Time setting 60 s–255 min; according to KNX application settings
- Sneak-by guard Yes
- Segment masking No individual segment adjustment; masking film to reduce the detection zone
- Parallel connection KNX; master/master and master/slave according to application settings
- Output type KNX telegrams; light 1–4 commands and HVAC objects
- Interface & control KNX TP 256; ETS V3 application; external actuators; no KNX Secure
- Settings ETS; optional RC6, RC7 and Smart Remote
- Colour / RAL White; RAL 9010
- In the box Square and round decorative trims; mounting box and system controls supplied separately
- Manufacturer SKU 058500
- EAN 4007841058500
- Sensor type Passive infrared (PIR); mixed-light measurement
- Presence detection zone 4 × 4 m (16 m²), at 2.8 m
- Motion detection Presence, radial and tangential 4 × 4 m (16 m²), at 2.8 m
- Application Indoors; offices, hotel and care rooms, utility rooms
- Installation Ceiling; installation in a concealed box
- Installation height 2.5–4 m
- Light-level setting 10–1000 lx; Teach
- Voltage KNX bus; current consumption 10 mA
- Functions Presence; constant-light control; light outputs 1–4; basic light; day/night; HVAC; logic
- Housing Plastic; white, RAL 9010
- IP rating IP20
- Dimensions 49 × 80 × 80 mm (article datasheet)
- Temperature range 0…+40 °C
- Warranty 5 years subject to manufacturer terms
- Dimmable Yes; 0–100% KNX commands to an external dimming actuator
- Dimming method KNX application constant-light control; external dimming actuator
Product Description

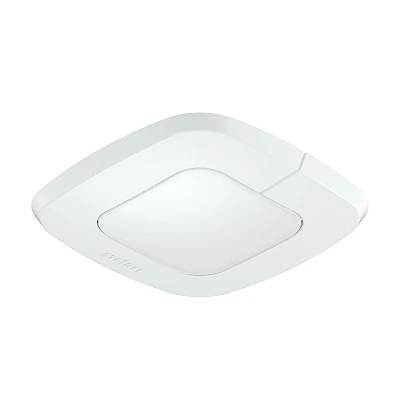

STEINEL IR Quattro SLIM XS 4m is a particularly flat presence detector for installation in a concealed ceiling box. Its white square front measures 80 × 80 mm and projects only approximately 6 mm above the ceiling surface. This low profile keeps the ceiling visually quiet in offices, hotel rooms, meeting rooms and compact work or utility spaces. A round decorative trim is also supplied, allowing the visible shape to match the interior design. The precision retina lens and square detection pattern are intended to monitor presence without a large housing projecting into the room. The plastic housing is white, RAL 9010. With an IP20 protection rating, this version is intended for dry indoor locations and should be positioned accordingly.

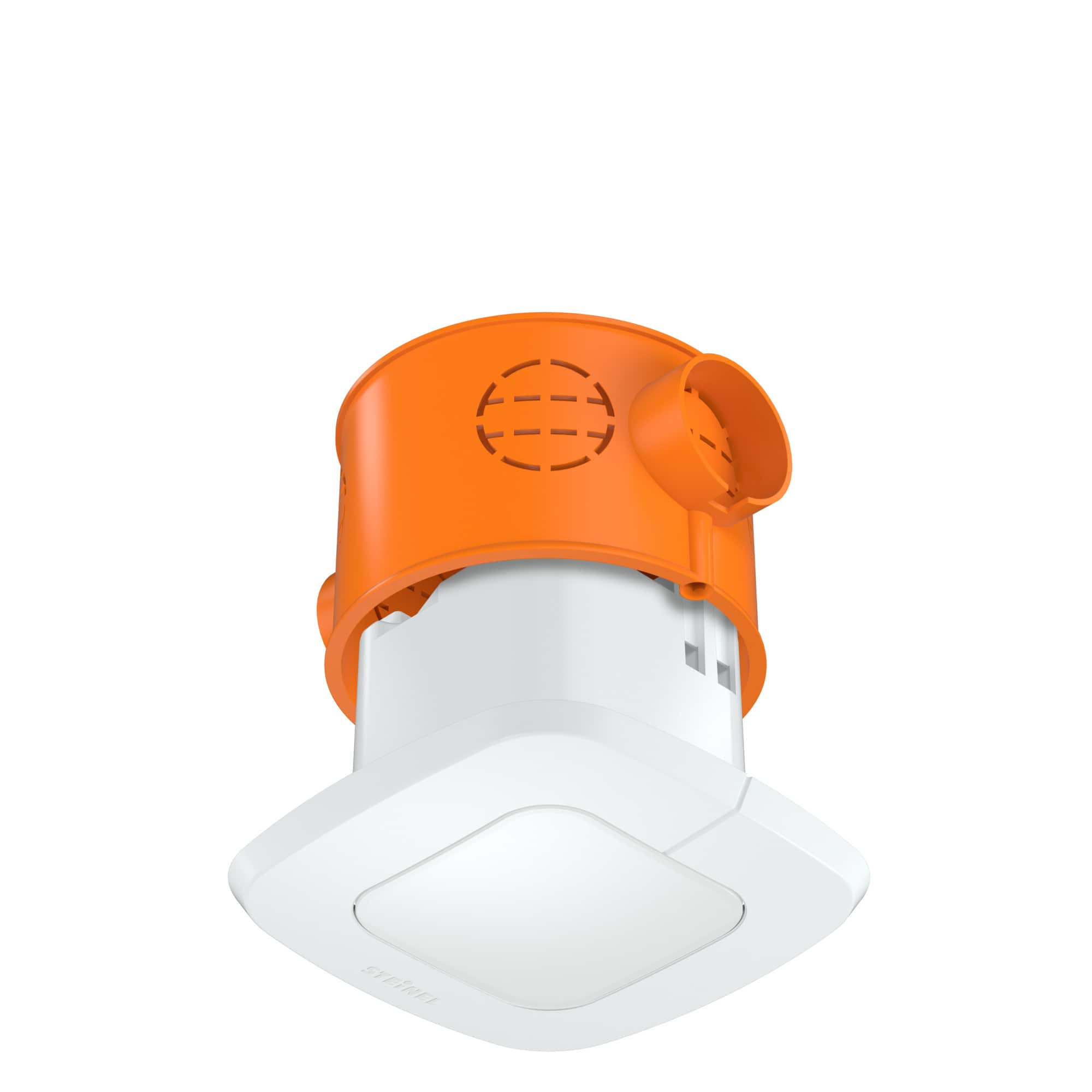

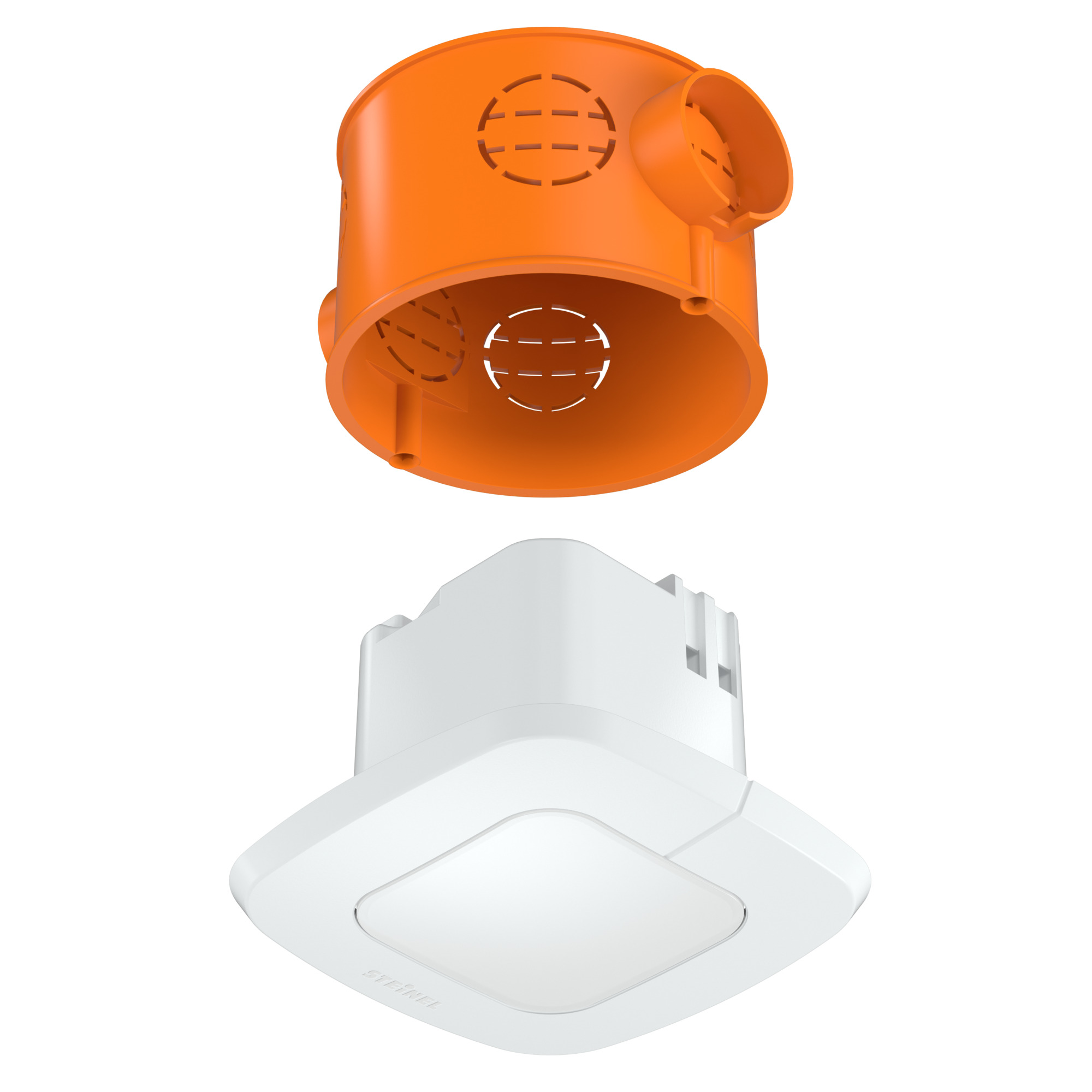

SLIM XS covers presence, radial movement and tangential movement over 4 × 4 m at the manufacturer's specified mounting height of 2.8 m. It is intended for ceilings 2.5–4 m high, and the light threshold can be set from 10–1000 lx. Installation requires a box up to 68 mm in diameter and at least 57 mm deep. The article data lists a 10 mA current demand from the KNX bus. Basic lighting and day/night behaviour can be configured in the application. RC6, RC7 and Smart Remote are optional, separately purchased accessories where remote operation is required.
Passive infrared technology (PIR) responds to moving sources of heat. For presence monitoring, it also detects smaller movements made by a person working at a desk. The detection angle is 360°, with a square pattern across the floor. Coverage should be planned around the installation height and actual workstation positions, because tall furniture, partitions and other obstructions can block the sensor's view. A PIR detector cannot guarantee recognition of a completely motionless person regardless of conditions. The manufacturer illustrates the detection area at a mounting height of 2.8 m; commissioning should include checking the places where occupants will sit and work. Measurement of ambient brightness complements the motion information, allowing the lighting system to take available daylight into account.
This is the KNX bus version with an integrated bus coupling. It provides motion, presence and brightness information as well as lighting control telegrams. The manufacturer's KNX application supports constant-light control and 0–100% dimming values for lighting outputs 1–4. These commands must be linked to the corresponding objects of a compatible external KNX dimming actuator. The detector can therefore regulate lighting towards a selected brightness target, while the actuator switches or dims the electrical load connected to the luminaire. Separate objects are also available for presence, day/night operation and heating, ventilation or air-conditioning control. Commissioning takes place in ETS software by assigning the physical address, selecting application parameters and connecting group addresses. The available operating behaviour depends on the functions enabled by the system integrator. Power comes from the KNX bus; the sensor must not be connected to a 230 V mains supply. Lighting, HVAC and manual override behaviour should be designed together with the relevant actuators.
Choose a position with a clear view of the monitored area and suitable separation from sources of heat that could affect detection. Heating equipment, air movement and moving objects within the planned zone deserve attention during commissioning. Space must be available above the ceiling for both the sensor housing and its connection; a small visible trim does not imply an equally small installation depth. The installation box, bus power supply, actuators and control unit should be selected to suit the actual project. If necessary, the sensor lens can be wiped with a damp cloth without cleaning agents. STEINEL states a five-year manufacturer's warranty for this Professional Line device, subject to the applicable warranty conditions.
